Halogen vs. LED Illumination in Scientific and Industrial Applications

In the lighting technology industry, Light-Emitting Diodes (LEDs) have become the dominant choice for general-purpose illumination due to their excellent energy efficient and long lifespan. Yet other lighting technologies, such as halogen lamps, continue to persist. Why?

The Dolan-Jenner Mi-150 Fiber-Lite halogen light source exemplifies why halogen lighting remains indispensable in specialized fields like microscopy, forensics, and quality control. Examining the underlying technologies between standard LED devices and the Mi-150, illuminates how these differences impact light quality and why halogen lighting continues to be the preferred choice in certain high-precision applications.

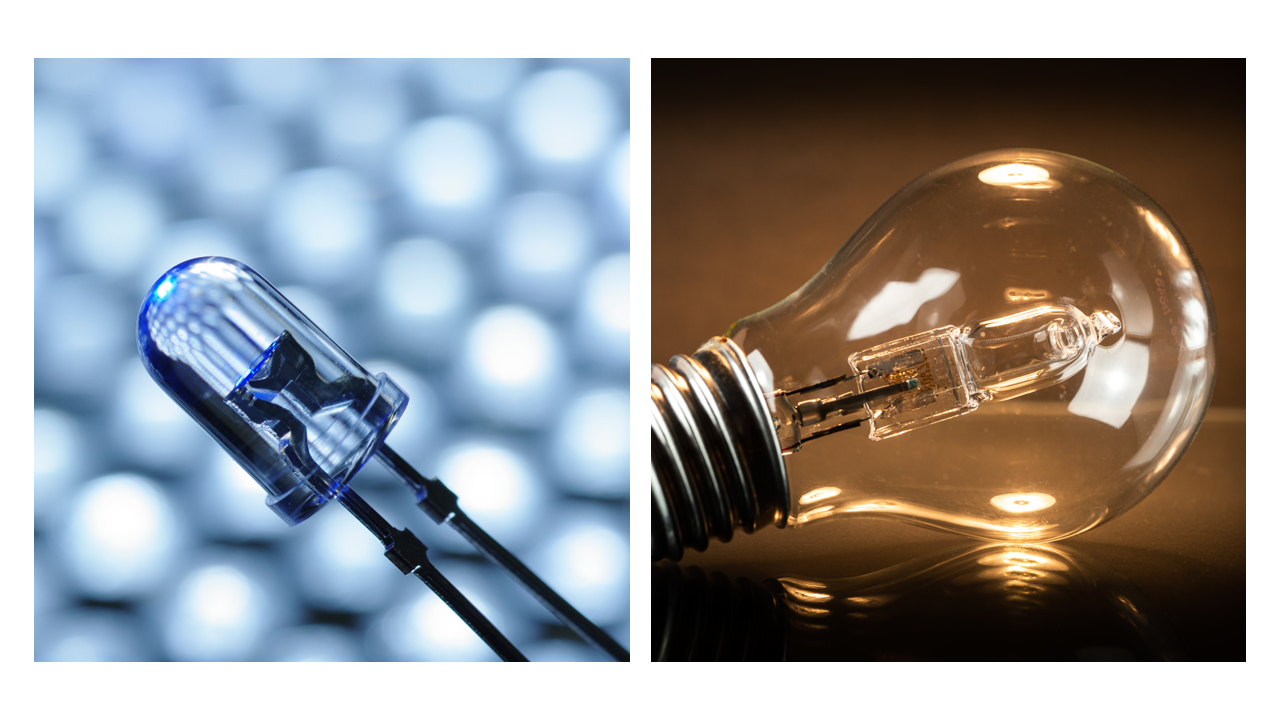

The Technologies Behind Halogen and LED Lights

LEDs (Light-Emitting Diodes) are semiconductor devices that produce light through a process called electroluminescence. When an electric current passes through a diode, electrons recombine with electron gaps in the semiconductor material, releasing energy in the form of photons. The energy and wavelength of these photons range from infrared to visible or ultraviolet light depending on the properties of the semiconductor used.

White light is typically achieved by coating a blue or UV LED with a phosphor material. This spectrum often features a pronounced spike in the blue region, which can affect color perception and visual comfort.

In contrast, halogen lamps are a refined form of incandescent lighting. The Mi-150 light source, for example, uses a tungsten filament enclosed in a quartz glass envelope filled with halogen gas. When an electric current passes through the filament, it heats up and emits light that closely resembles natural sunlight.

As the filament heats, tungsten can evaporate, which would typically degrade the lamp over time. The presence of an inert gas and halogen inside the quartz envelope, however, initiates a chemical process known at the halogen cycle. This reaction redeposits evaporated tungsten back onto the filament, extending the lamp’s lifespan and allowing it to operate at higher temperatures. The result is a brighter light output and improved color temperature, making halogen lamps ideal for applications requiring high-quality illumination.

Spectrum and Color Rendering

One of the most significant differences between halogen and LED lighting lies in their spectral output. Halogen lamps emit a continuous spectrum of light, closely mimicking natural sunlight. This results in a Color Rendering Index (CRI) near 100, meaning colors appear true and vibrant under halogen illumination, almost exactly as they would under sunlight. The absence of spectral spikes ensures smooth, natural light that is easy on the eyes.

LEDs, while capable of high CRI, often produce light with spiky spectra especially in the blue and green regions. This can lead to unnatural color perception like metamerism (when 2 colors look the same due to lighting) and eye strain. In applications where accurate color rendition is critical, such as forensic analysis or biological microscopy, the lack of spectral fidelity can be disadvantageous.

Applications Where Halogen Excels

Despite the rise of LEDs, halogen lamps remain relevant in several high-precision fields:

• Forensics: The spectral fidelity offered by their continuous spectrum is beneficial for applications like fluorescence, reflectance, absorption, latent fingerprint identification, crime scene search, forensic photography and imaging, and the detection of biological fluids.
• Microscopy: Because halogen light closely mimics natural sunlight, it offers significant advantages for observing stained samples and ensuring consistent, accurate color rendition. This makes halogen illumination a preferred choice for diagnostic equipment such as biochemical and hematology analyzers, as well as optical microscopes.

• Gemology: The high CRI of halogen lamps are highly beneficial in gemology, where the accurate perception of a gemstone's color and clarity is paramount.

• PCB Assembly and Quality Control: For inspection systems, halogen lamps are useful for diffuse illumination, which helps in lighting reflective or shiny parts (like solder joints on PCBs) by producing little glinting and reducing shadows, aiding in detecting empty holes and missing solder. They can also be used with fiber-optic sources for directional or polarized lighting, which can enhance details like silk-screened legends and reduce specular reflections.
• Task Lighting: Halogen lights are often considered healthier for the eyes. Their spectral output causes less eye strain, headaches, nausea, and difficulty focusing.  Halogen lamps also emit significantly less high-energy blue light, helping to support circadian rhythm and reduce the negative effects of prolonged blue-light exposure. As a result, people who work under halogen lighting often experience less visual fatigue and greater overall comfort.

The Dolan-Jenner Mi-150: Purpose-Built for Precision

The Dolan-Jenner Fiber-lite Mi-150 is a 150W halogen light source engineered specifically for microscopy and task lighting. It exemplifies how halogen technology can be optimized for demanding applications:

• Light Quality: With a color temperature of 3250K, the Mi-150 delivers soft, full-spectrum white light that enhances visual comfort and color accuracy.
• Intensity and Control: Offering up to 350,000 foot-candles of light with variable intensity control, it provides the flexibility needed for detailed inspections.
• Fiber Optic Versatility: Compatible with a wide range of fiber optic assemblies, the Mi-150 supports ring lights for shadow-free illumination and gooseneck systems for targeted lighting like microscopy and PCB inspection.
• Filtering Options: Optional infrared and color filters allow users to tailor the light spectrum for specific tasks, such as enhancing contrast or reducing heat.
• User-Friendly Design: Features like easy lamp replacement, low vibration, and low noise operation make the Mi-150 a practical and reliable choice for laboratory environments.

Conclusion

While LEDs dominate the mainstream lighting market, halogen lamps continue to shine in specialized applications where spectral fidelity, color accuracy, and light quality are paramount. The Dolan-Jenner Mi-150 exemplifies how halogen technology can be harnessed to meet the rigorous demands of scientific, forensic, and industrial tasks. For professionals who rely on what they see, halogen remains not just relevant, but essential.
