B5 & BX5 Glass Fiber Optic Cable, 5/32" (4mm) Active Fiber Bundle

Flexible, single fiber optic light guide cable assemblies.  B5 type have a PVC-Monocoil sheathing which is smooth and easy to clean. BX5 type have a flexible stainless steel sheathing that is super strong and will hold up to high temperature applications.

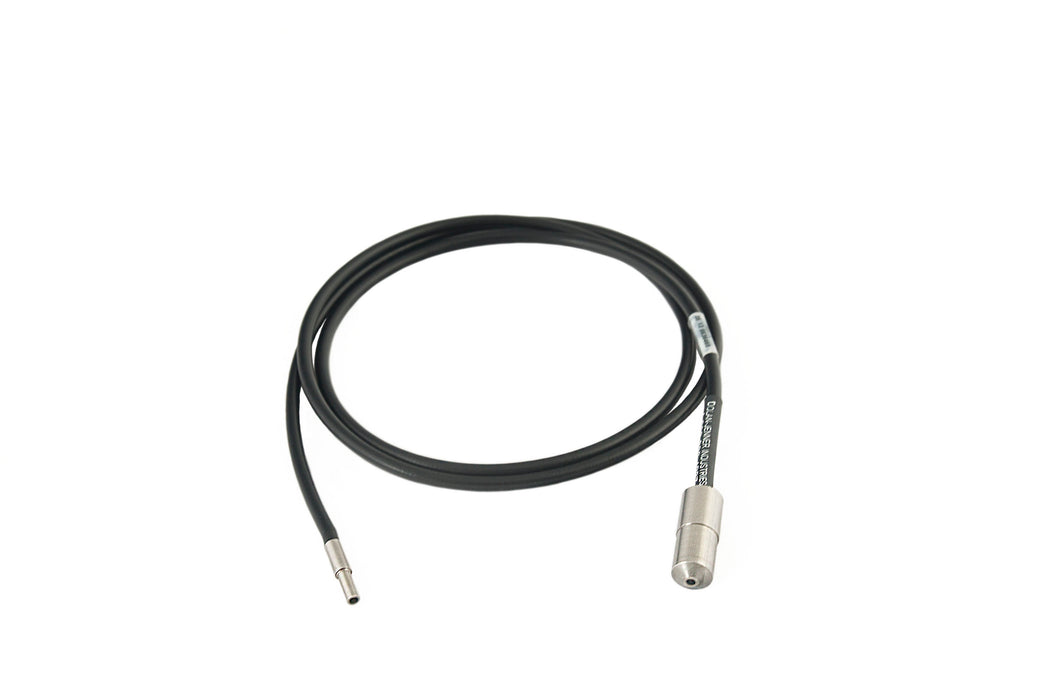

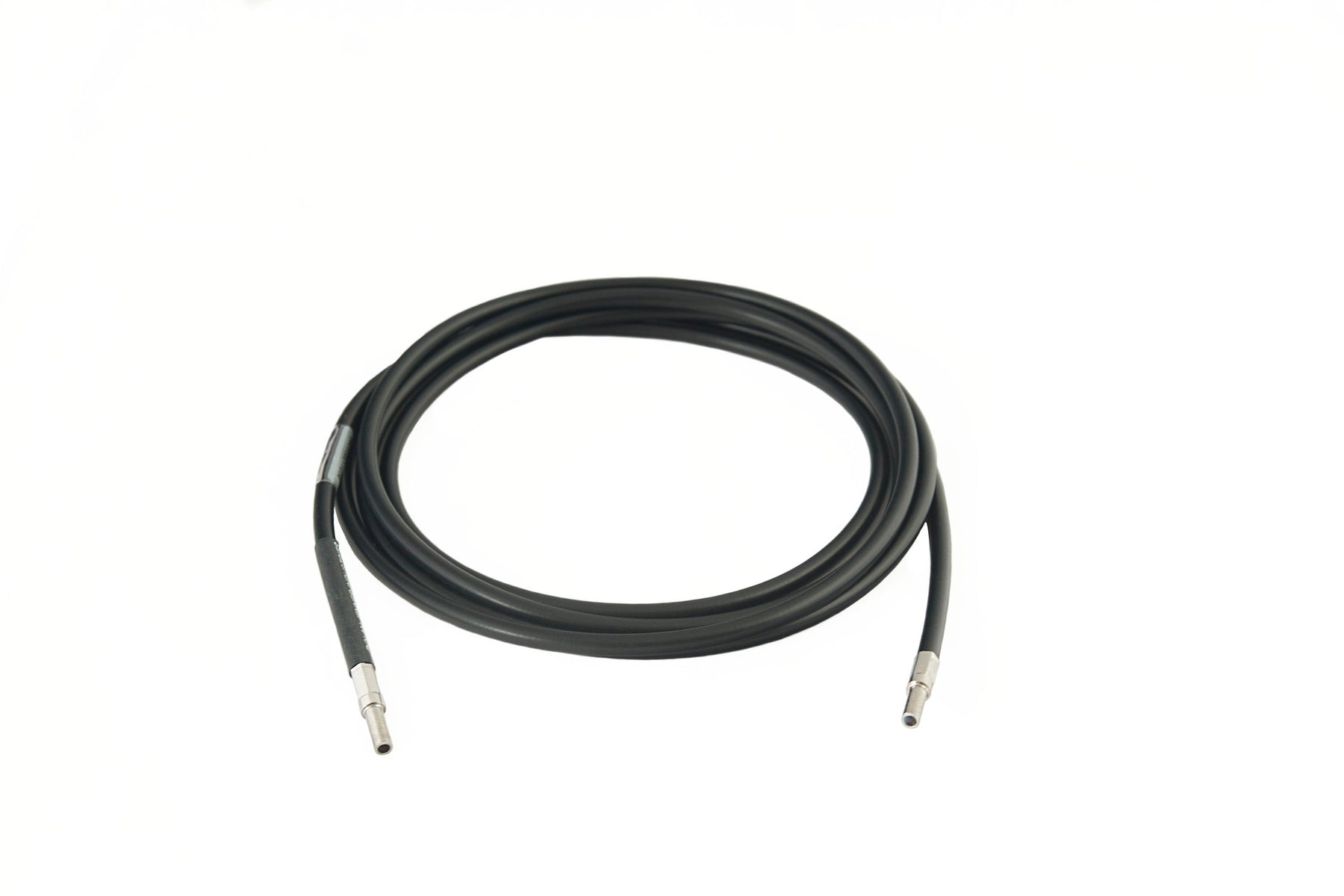

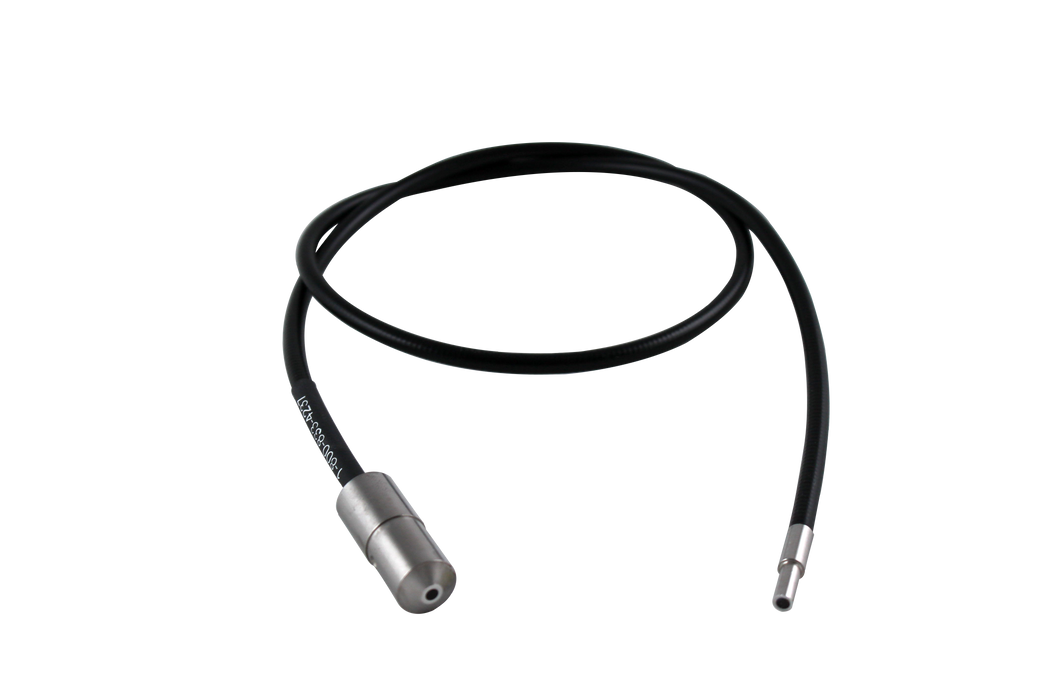

• "B5" Type designates Single flexible cable assembly, PVC sheathing, .156" (4mm) diameter bundle of fiber.

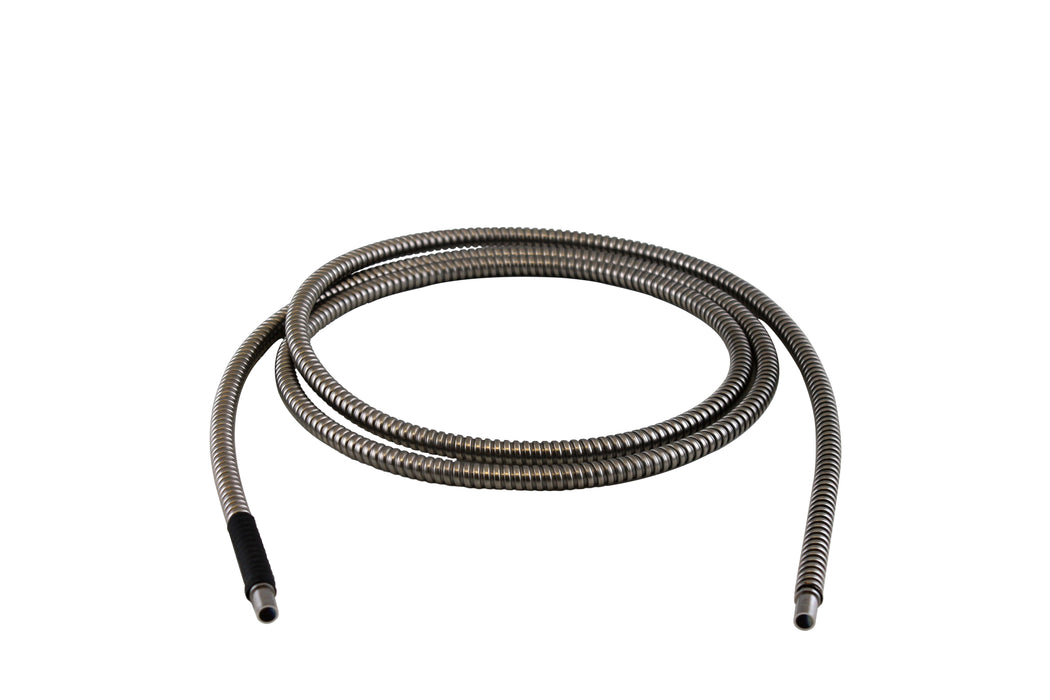

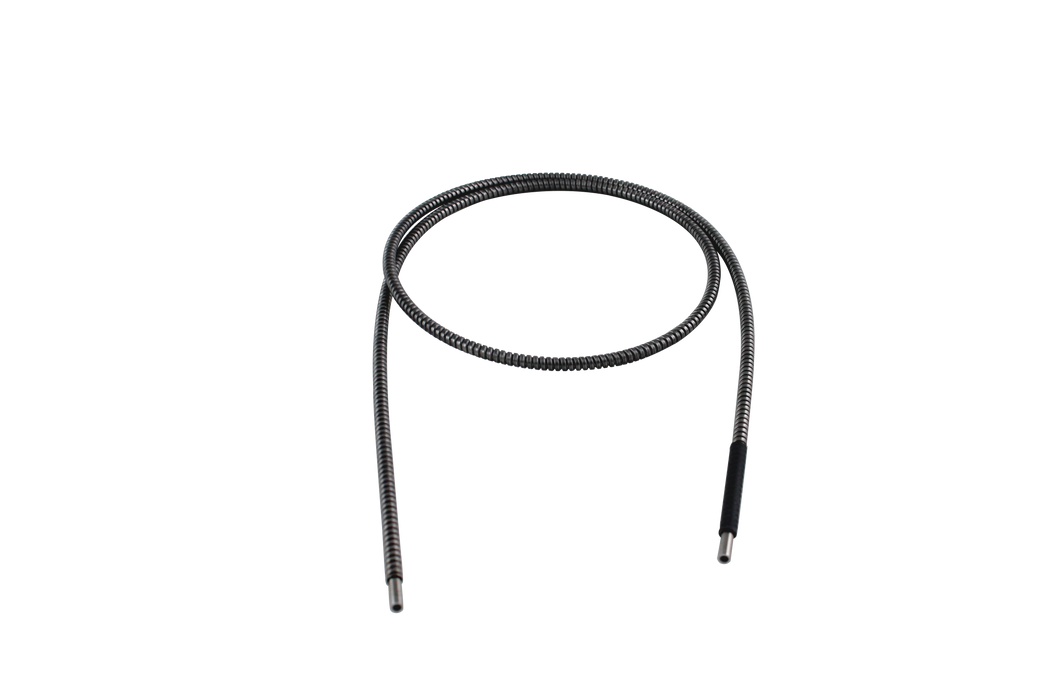

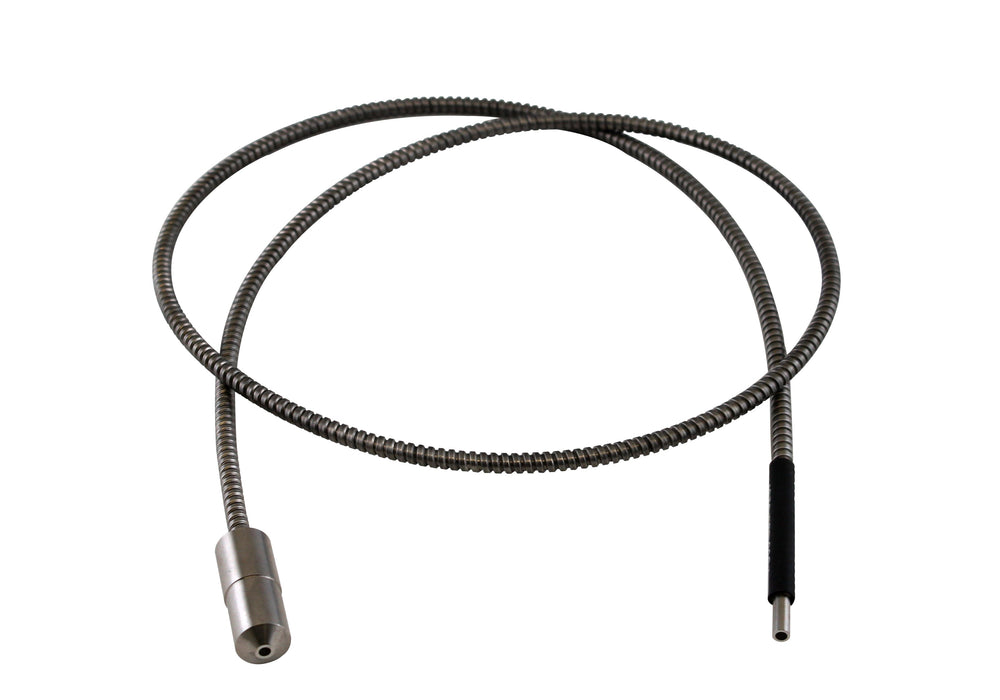

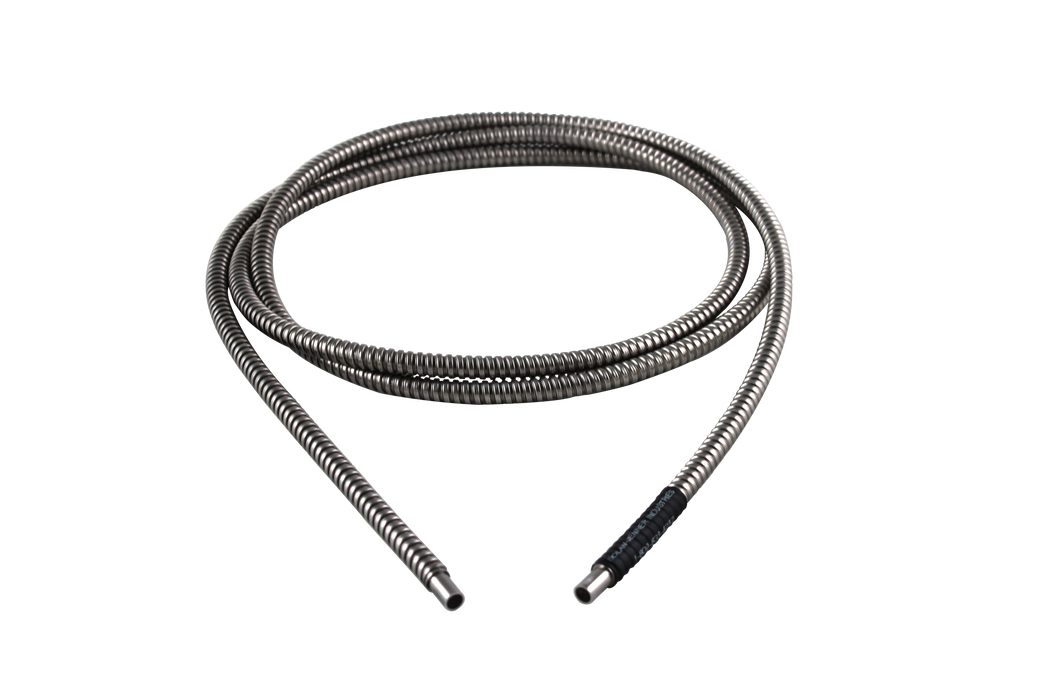

• "BX5" Type designates Single flexible cable assembly, Stainless steel sheathing, .156" (4mm) diameter bundle of fiber.

• Individual Fiber Diameter: 0.002 in. (0.050mm)

• Fiber Material: Borosilicate Glass

• Numerical Aperture / Acceptance Cone:  0.55NA, 68° (nominal) @ 0.55 (nominal)

• Packing Fraction 82% (nominal) w/0.002” fiber

• Spectral Transmittance 0.4 to 2.0 micron

• Transmission Losses max. 10%/ft. at 0.6 microns
