B6 & BX6 Glass Fiber Optic Cable, 1/16" (1.6mm) Active Fiber Bundle

$86.00
Part Number B624 002112003024

Also Available at Select Distributors

ADAPTER REQUIRED TO CONNECT CABLE TO LIGHT SOURCE. SEE TABLE BELOW.

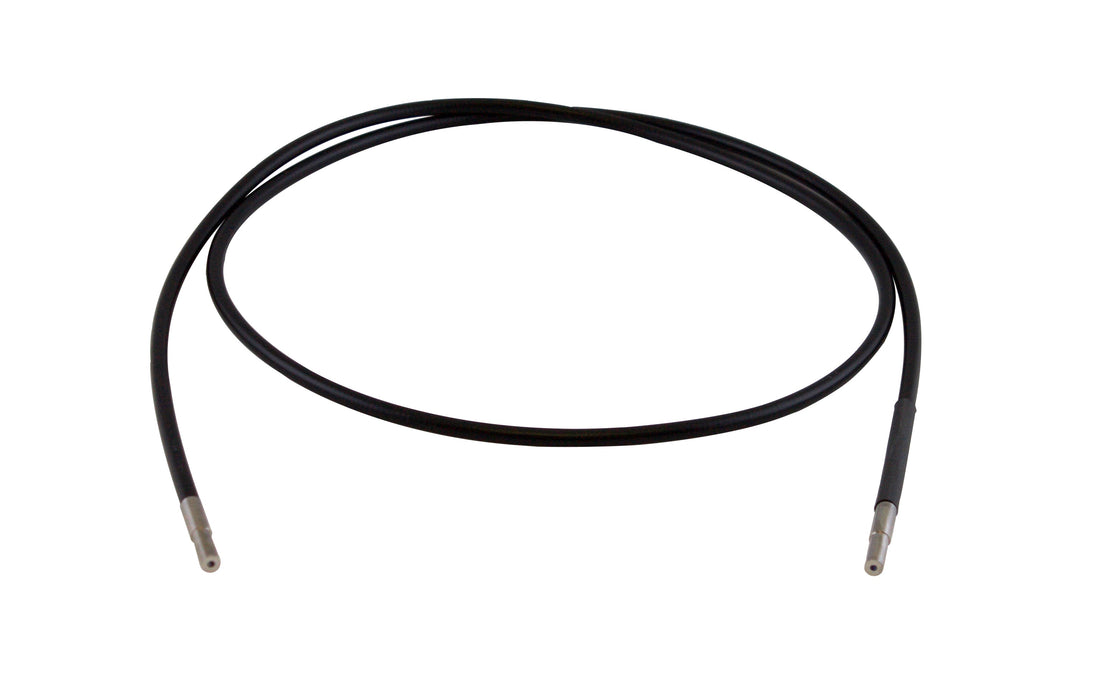

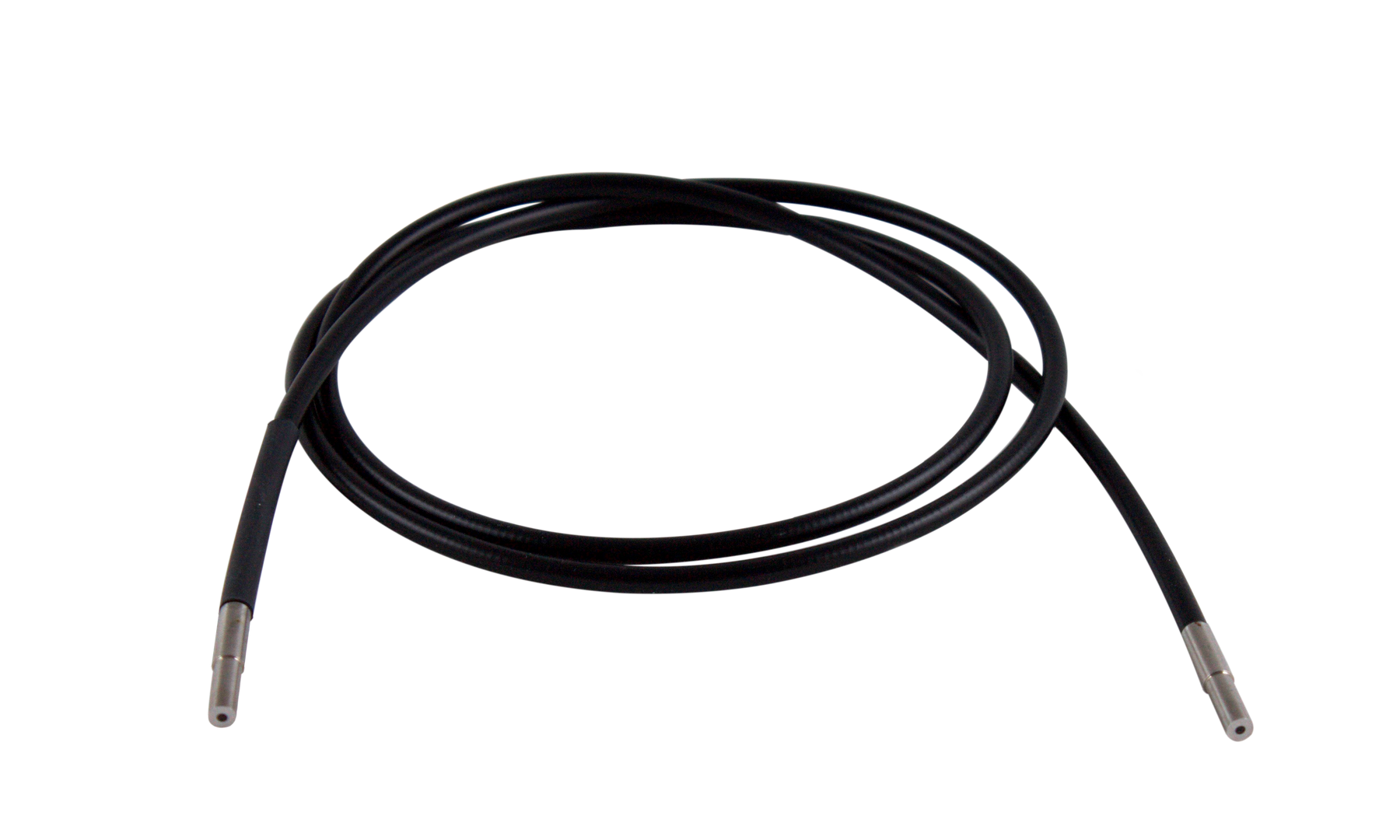

  • "B6" Type designates Single flexible cable assembly, PVC sheathing, .062 diameter bundle of fiber.

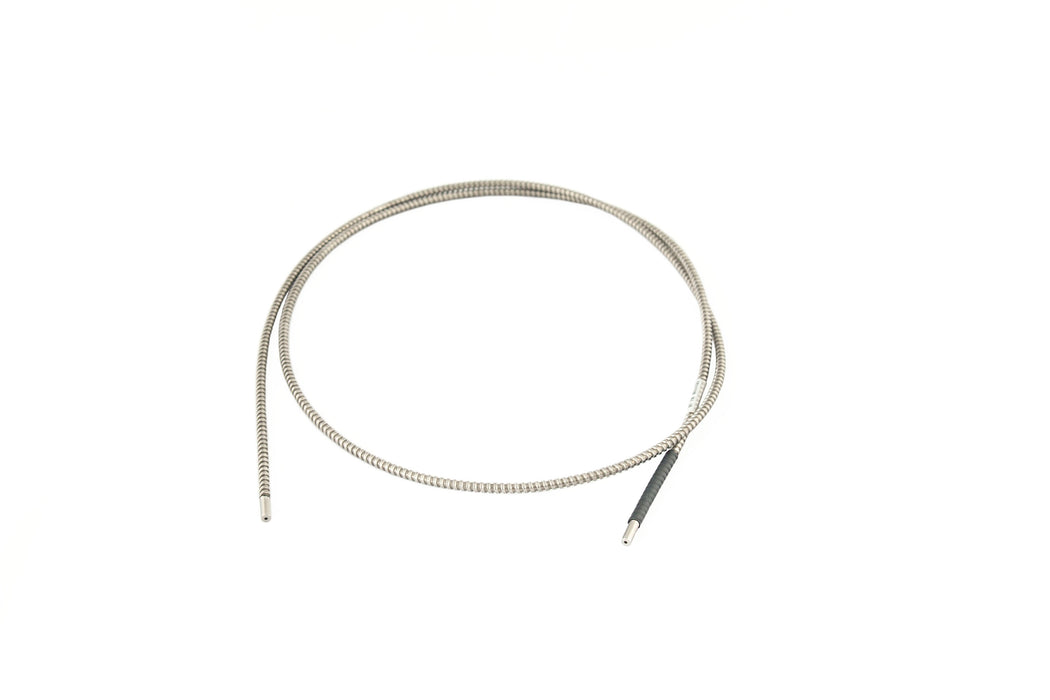

  • "BX6" Type designates Single flexible cable assembly, Stainless steel sheathing, .062 diameter bundle of fiber.

  • Individual Fiber Diameter: 0.002 in. (0.050mm)

  • Fiber Material: Borosilicate Glass

  • Numerical Aperture / Acceptance Cone:  0.55NA, 68° (nominal) @ 0.55 (nominal)

  • Packing Fraction 82% (nominal) w/0.002” fiber

  • Spectral Transmittance 0.4 to 2.0 micron

  • Transmission Losses max. 10%/ft. at 0.6 microns
