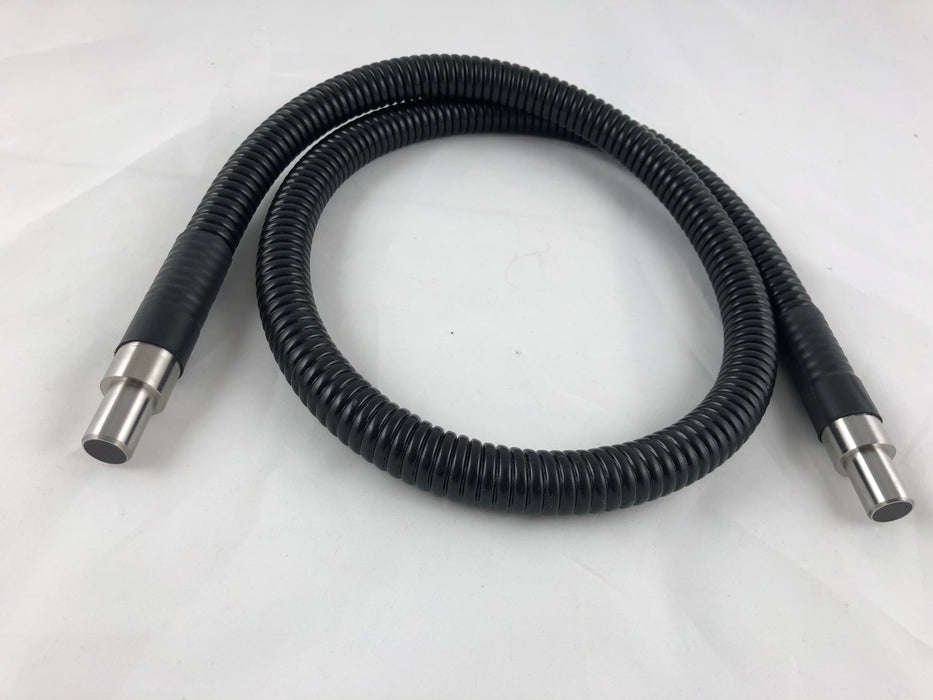

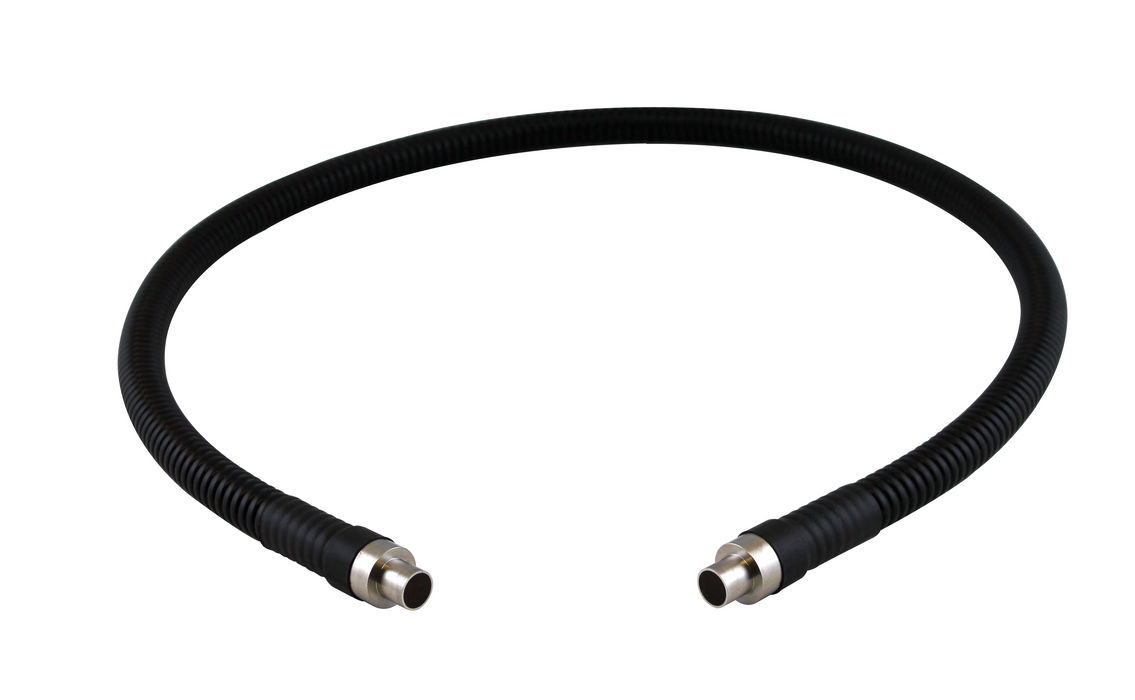

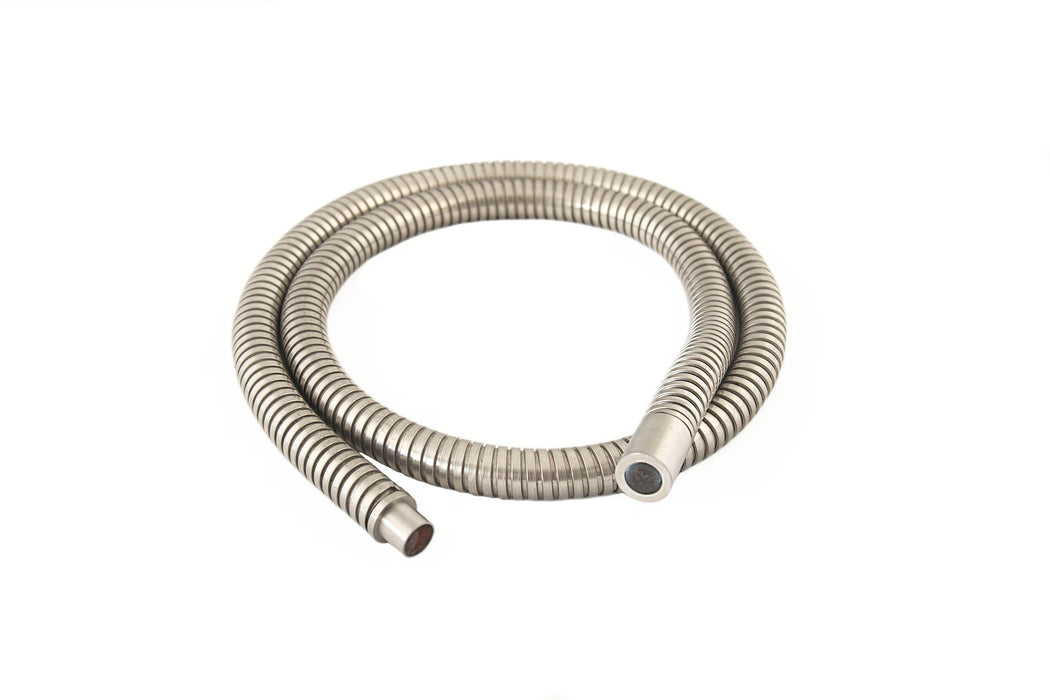

B2, BR2 & BXS2 Glass Fiber Optic Cable, 1/2" (12.7mm) Active Fiber Bundle
$609.00
Part Number BR224M 700015870024
-
Individual Fiber Diameter: 0.002 in. (0.050mm)
-
Fiber Material: Borosilicate Glass
-
Numerical Aperture / Acceptance Cone: 0.55NA, 68° (nominal) @ 0.55 (nominal)
-
Packing Fraction 82% (nominal) w/0.002” fiber
-
Spectral Transmittance 0.4 to 2.0 micron
-
Transmission Losses max. 10%/ft. at 0.6 microns
